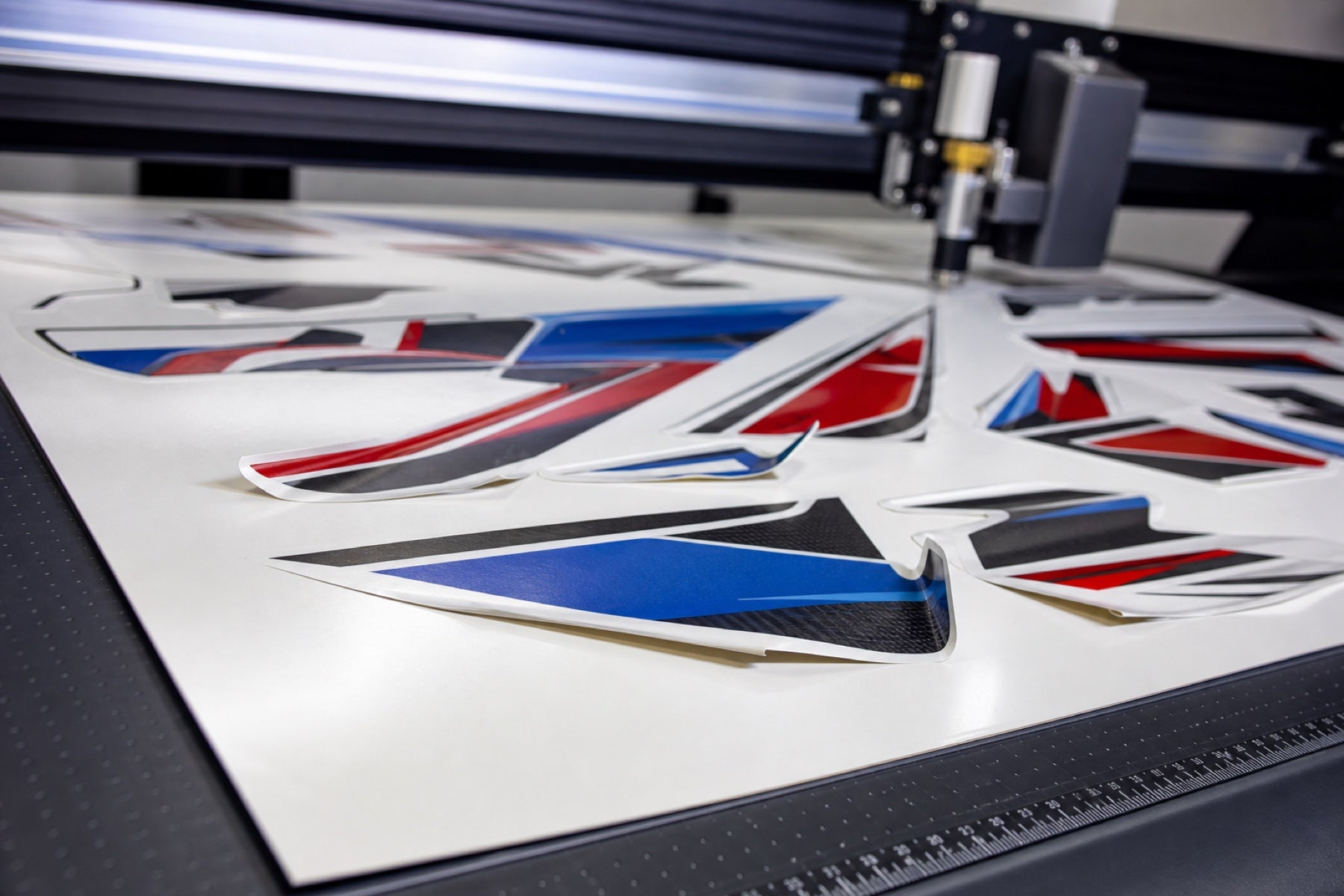

A kiss-cut sticker should stay flat on its liner until the customer deliberately removes it. When corners or narrow points rise during cutting, weeding or packing, the immediate temptation is to increase adhesive strength. That can miss the real problem. Edge lift is often a finishing interaction between cut depth, blade condition, liner release, material stress and decal geometry.
Start by noting when the edge first lifts. A corner that rises on the cutter has a different cause from a decal that lifts after 24 hours in a bag.
Seven likely causes
1. Too much blade force
The blade should cut the face film and laminate without deeply scoring the release liner. Excess force creates a weakened outline and can push or drag small shapes. Perform a test cut whenever the material construction or blade changes.
2. A dull, damaged or incorrect blade
A dull blade pulls instead of slicing cleanly. Too much blade exposure creates similar drag. Inspect the tip under magnification and use the blade angle recommended for the total construction thickness and detail level.
3. Speed is too high for the artwork
Fast direction changes can disturb sharp corners and fine points. Reduce cutter speed for small, intricate decals and compare edge behavior—not only whether the cut weeds.
4. Release force is mismatched
The liner must hold shapes during production but release them for application. If release is too easy, small parts can lift. If it is too tight, peeling can distort the sticker or separate layers. Evaluate both machine handling and customer peel experience.
5. Lamination stress
Excess laminate tension or an incompatible laminate can create stored energy. Cutting releases that stress along the new perimeter, so the edge rises even though the uncut sheet appeared flat.
6. Sharp geometry
Needle points, narrow bridges and square corners concentrate stress. Where design permits, round external corners and thicken fragile elements. A tiny radius can improve production without changing the visual character.
7. Ink, time and environment
Heavy ink, inadequate stabilization, high humidity or tightly rolled storage can alter the construction. Track whether lift appears immediately, after stacking or after the finished sheets move to another room.
Separate cutter problems from material problems
Run the same simple shape in four conditions:
- Unprinted, unlaminated media.
- Printed, unlaminated media.
- Printed and laminated media.
- Printed and laminated media with reduced cutter force and speed.
If only condition three lifts, investigate laminate stress and the finished construction. If all four lift at the same corners, inspect blade setup, liner release and geometry. If lift follows only heavy ink zones, review printing and stabilization.
Build a useful cutter test file
Include more than a square and circle. A production test should contain:
- A two-inch circle
- A one-inch rounded square
- A star or pointed shape
- Small text or a narrow bridge
- A six-inch decal with long curves
- Light and heavy ink coverage versions
Cut three rows at slightly different forces while keeping speed constant, then repeat at a lower speed. Label the liner outside the artwork so the result stays traceable.
Inspect at three checkpoints
On the cutter: Look for corners moving as the blade changes direction.
After weeding: Check whether lifting begins when the surrounding matrix is removed. Matrix removal angle and speed can affect small shapes.
After 24 hours: Stack finished sheets as they would be packed, then inspect edge rise and finished flatness. A passing result should survive the real wait time before shipment.
Fixes in the right order
- Confirm blade condition and minimum exposure.
- Reduce force until the liner is no longer scored, while preserving a clean cut.
- Reduce speed for small geometry.
- Test rounded corners or simplified points.
- Confirm print stabilization and laminate tension.
- Compare liner release and construction only after the process is controlled.
Changing one variable at a time preserves the evidence. Changing blade, force, speed and media together may produce a better sheet, but it will not tell you why.
Frequently asked questions
Does stronger adhesive prevent kiss-cut edge lift?
Not necessarily. The sticker is still on its release liner, so cut mechanics, liner release and construction stress may matter more than adhesion to the final substrate.
Why do only sharp corners lift?
Sharp corners concentrate force and are more easily disturbed by blade drag or laminate recovery. A small radius often improves stability.
Should the blade leave a visible line in the liner?
A faint impression may occur, but a deep cut or cracked liner indicates excessive blade exposure or force and can destabilize the sheet.
Can weeding technique cause lift?
Yes. Pulling matrix quickly or at a poor angle can tug on small shapes. Standardize direction, angle and speed during testing.
The practical takeaway
Edge lift is a process diagnostic, not automatically an adhesive failure. Find the stage where it begins, test cut mechanics first, and then evaluate laminate stress and liner release. For a sample sized to your real printer and cutter workflow, use the MaxDecals product-fit form.
