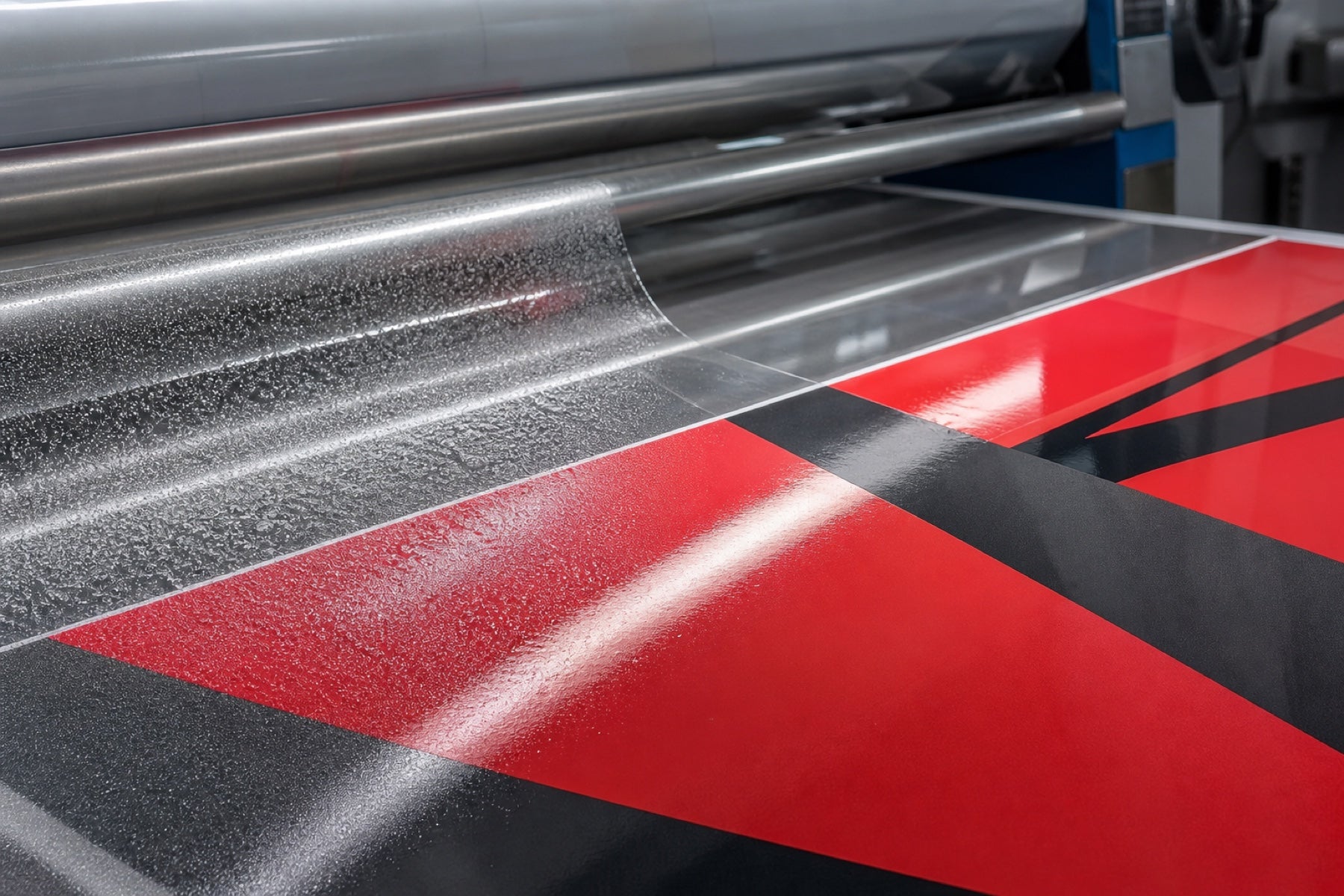

Lamination silvering appears as a cloudy, frosted or sparkling pattern between printed vinyl and a clear overlaminate. It is most visible over dark colors and under angled light. The effect comes from tiny air spaces or incomplete adhesive contact scattering light instead of letting it pass cleanly through the construction.
Silvering can improve as the laminate adhesive wets out, but a shop should not assume every cloudy print will clear. The fastest diagnosis is to separate temporary wet-out from contamination, texture, trapped air and incompatible materials.
The most common causes
Incomplete adhesive wet-out
Pressure-sensitive laminate adhesive needs time and contact to flow into microscopic surface texture. Some constructions look slightly silvered immediately after lamination and become clearer after resting. Record the appearance at 0, 2 and 24 hours.
Insufficient or uneven nip pressure
Low pressure, an unlevel roller or a hard spot can leave inconsistent contact across the web. Use the laminator manufacturer's setup method rather than compensating with excessive brake tension.
Excessive speed
Running too fast reduces the time available for air to escape at the nip. Slowing the laminator is a useful diagnostic step, especially on dense, dark graphics.
Dust and surface contamination
Fibers, powder and dried overspray create permanent high points. Clean the work area, use lint-free methods appropriate for the media and cover stabilized prints before lamination.
Printed surface texture
Ink laydown, printer technology and media coating can produce different micro-textures. Heavy ink coverage often makes silvering more visible. A pairing that looks clear on unprinted white may not look clear over saturated black.
Film and laminate mismatch
Adhesive chemistry, laminate stiffness and surface energy must work together. A laminate described as optically clear may still need testing on the exact printed face film and ink system.
What official product information can—and cannot—prove
The official Substance ICON PL-3150 page describes a smooth release liner intended to reduce silvering and an adhesive designed for fast wet-out. Those are useful selection clues, but they do not remove the need to test the laminate over the actual printed media. The printer, ink load, drying schedule and laminator remain part of the result.
When comparing products, look for a technical data sheet, a named compatible base film and processing guidance. Avoid treating the word “premium” as a process specification.
A five-panel silvering test
Print a single file with white space, mid-tone gray, saturated black, a color gradient and fine text. After the required stabilization time, cut it into five matched panels:
- Current production settings.
- Slower lamination speed.
- Slightly adjusted nip pressure within equipment guidance.
- Reduced laminate brake tension.
- Alternate tested laminate construction.
Keep everything else constant. Inspect each panel under diffuse room light and a bright light at a shallow angle. Photograph the same dark area immediately, after two hours and after 24 hours.
This test tells you whether the problem responds to process changes or follows a specific laminate pairing.
Do not solve silvering by adding uncontrolled heat
Warmth can accelerate adhesive flow in some systems, but too much heat may distort the film, increase shrink stress or damage the print. Use heat only when the laminate and equipment manufacturers permit it, and document the setting. A cold-lamination product should not be turned into an improvised hot-lamination process.
Production checklist
- Print profile matches the media and ink system.
- Ink is fully stabilized before lamination.
- Print surface is clean and protected from dust.
- Laminate and print are acclimated to the same room.
- Rollers are clean, parallel and in good condition.
- Webs enter the nip square without wrinkles.
- Brake tension is only high enough to control the roll.
- Speed and pressure are recorded on the job ticket.
- Finished sample is inspected after an agreed wet-out period.
When silvering is acceptable
Acceptance depends on the job. A small temporary haze that disappears within the documented finishing window may be acceptable. Persistent silvering on premium labels, chrome effects or high-gloss race graphics is usually more visible and should be rejected before cutting the full run. Set the acceptance standard with a signed sample when appearance is critical.
Frequently asked questions
Will all silvering disappear overnight?
No. Temporary incomplete wet-out may improve, but contamination, severe trapped air or an incompatible surface can remain.
Why is silvering easier to see on black?
Dark printed areas create greater contrast, making microscopic air spaces and scattered light more visible.
Does more pressure always help?
No. Too much pressure can introduce other defects or stress. Confirm roller alignment and use the equipment's recommended operating range.
Can I test laminate clarity on unprinted vinyl?
That is only a preliminary check. Final approval should include heavy ink coverage printed with the production printer, ink and profile.
The practical takeaway
Silvering is a contact problem with several possible causes. Control cleanliness, drying, pressure, speed and tension before blaming a single roll. Then compare compatible film-and-laminate systems using identical dark test panels. For specialty finishes or high-impact decals, request a product-fit test and include your printer, ink, laminate and target appearance.
