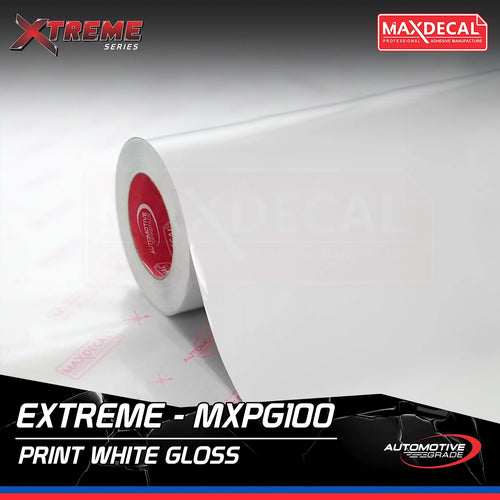

Printable FilmMXPG100
Printable White Gloss
- Face stock
- PVC, 90 μm
- Adhesive
- 38 μm high-tack removable
- Liner
- 160 gsm double PE
- TDS roll size
- 50 in × 164 ft
- Peel adhesion
- 20 N/25 mm after 20 minutes; 25 N/25 mm after 24 hours
MAXDECAL XTREME Technical Data Sheets
MAXDECAL XTREME RESOURCE CENTER
Technical Data Sheets
Official product specifications for the six-product MAXDECAL XTREME USA line: two printable films, two lightweight overlaminates and two heavy-duty overlaminates.
Important: TDS dimensions describe the manufacturer master-roll format. Available U.S. order sizes may differ. Confirm the current order format and test the complete print, laminate, cut and application workflow before production.

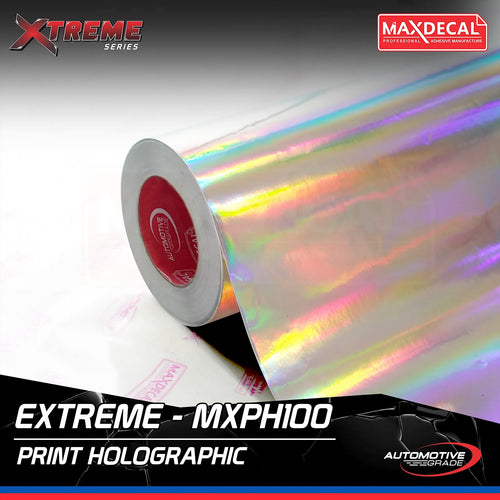

Printable FilmMXPH100
Printable Holographic
- Face stock
- PVC, 90 μm
- Adhesive
- 35 μm high-tack removable
- Liner
- 160 gsm double PE
- TDS roll size
- 50 in × 164 ft
- Peel adhesion
- 20 N/25 mm after 20 minutes; 25 N/25 mm after 24 hours
Lightweight OverlaminateMXOG60
Gloss Overlaminate
- Face stock
- PVC, 60 μm
- Adhesive
- 25 μm high-tack removable
- Liner
- 75 gsm PET
- TDS roll size
- 50 in × 164 ft
- Peel adhesion
- 15 N/25 mm
Lightweight OverlaminateMXOS60
Satin Overlaminate
- Face stock
- PVC, 60 μm
- Adhesive
- 25 μm high-tack removable
- Liner
- 75 gsm PET
- TDS roll size
- 50 in × 164 ft
- Peel adhesion
- 15 N/25 mm
Heavy-Duty OverlaminateMXTG350
Heavy-Duty Gloss Overlaminate
- Face stock
- EVA, 350 μm
- Adhesive
- 35 μm high-tack removable
- Liner
- 75 gsm PET
- TDS roll size
- 50 in × 98 ft
- Peel adhesion
- 20 N/25 mm after 20 minutes; 25 N/25 mm after 24 hours
Heavy-Duty OverlaminateMXTS350
Heavy-Duty Satin Overlaminate
- Face stock
- EVA, 350 μm
- Adhesive
- 35 μm high-tack removable
- Liner
- 75 gsm PET
- TDS roll size
- 50 in × 98 ft
- Peel adhesion
- 20 N/25 mm after 20 minutes; 25 N/25 mm after 24 hours
