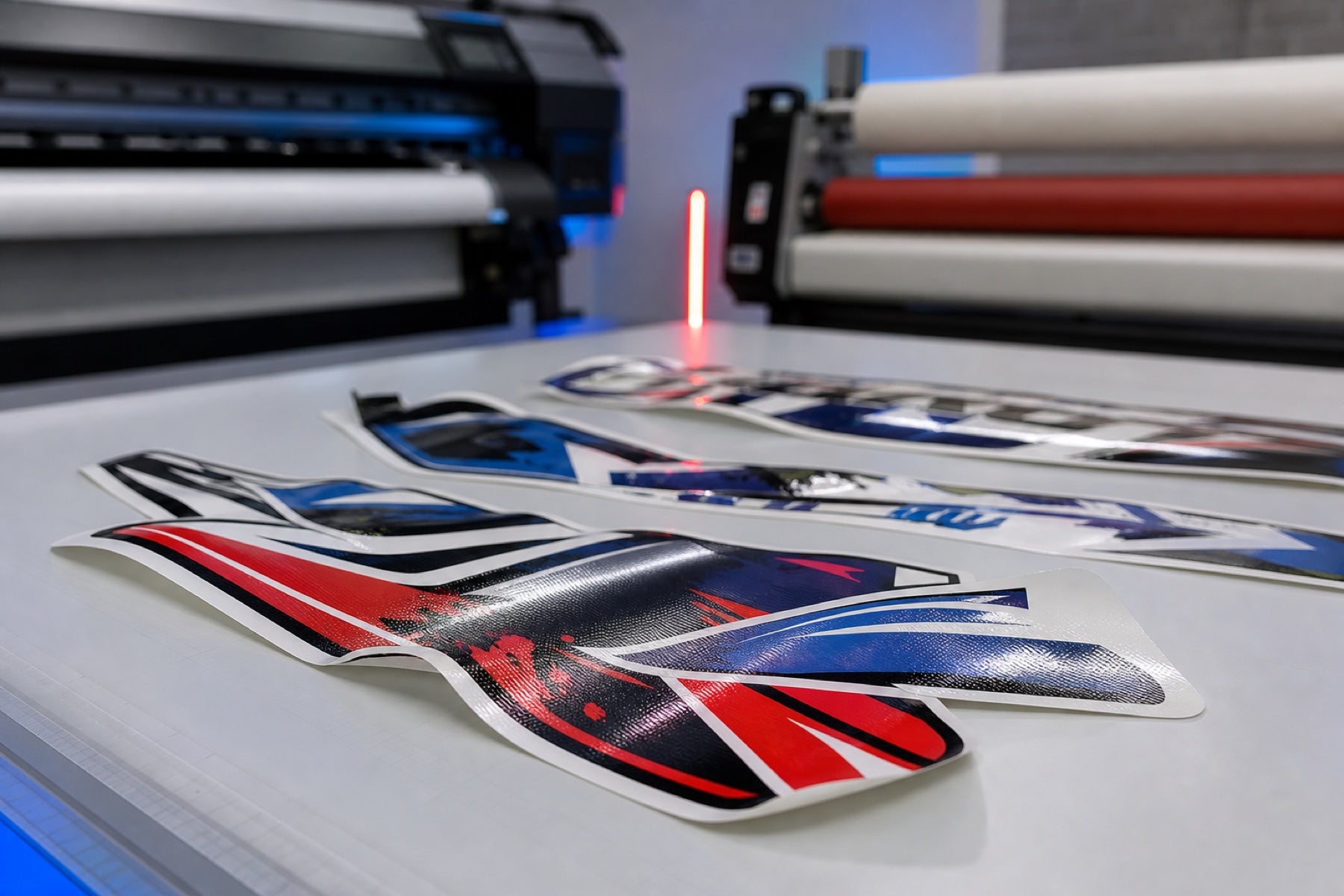

Sticker curl is rarely caused by one bad machine setting. A finished decal is a small material system: printable film, ink, pressure-sensitive adhesive, release liner and—when used—overlaminate. Each layer reacts differently to moisture, heat, tension and time. When those forces are out of balance, the finished sticker may lift at an edge, form a shallow cup or roll into a tube after it is removed from the cutter.
The useful question is not simply “Which vinyl curls?” It is: At what stage does curl first appear, and which variable changed immediately before it?
Start by identifying the type of curl
- Whole-sheet curl before printing: commonly points to storage, humidity, roll memory or liner stability.
- Curl after printing: investigate ink load, drying or outgassing time, heater settings and how tightly the print was rewound.
- Curl after lamination: examine laminate tension, nip pressure, film-to-laminate compatibility and temperature.
- Curl after contour cutting: check whether the cut is too deep, shapes are too small, corners are too sharp or release force is high.
- Curl only after removing the liner: the face film and laminate may have different shrink or stiffness characteristics.
This sequence matters. If the unprinted media is flat but the laminated print curls, changing cutter force will not solve the root cause.
Six common causes
1. Film and laminate are mechanically mismatched
A stiff laminate over a softer face film can create an internal spring. A laminate or film that shrinks more than its partner can also pull the construction into a curve. Pair materials as a tested system whenever possible, then verify the combination on your own printer and finishing equipment.
2. Excess laminate tension
Cold laminators can stretch a thin overlaminate when brake tension is too high. Once the web exits the rollers, the stretched laminate tries to recover and pulls the printed film with it. Reduce tension to the minimum required for wrinkle-free feeding and confirm that both webs enter the nip square.
3. Ink has not stabilized
Heavy ink coverage, solvent retention or aggressive heater settings can temporarily change the printed film. Let printed media stabilize according to the ink and media manufacturers' instructions before lamination. Record the actual wait time instead of relying on memory.
4. Liner moisture and roll memory
Paper-based liners can respond to humidity. Tight winding and long storage can add roll memory. Keep media in its original packaging, store rolls vertically when specified by the manufacturer and allow cold rolls to acclimate before opening them in a warm shop.
5. The cut reaches too far into the liner
A deep kiss cut weakens the liner and creates many tiny hinges. The sheet may look acceptable on the cutter but curl during weeding, stacking or packing. Use the lowest force that cleanly cuts the film and laminate while leaving the liner surface intact.
6. Sticker geometry concentrates stress
Small decals, thin points and sharp inside corners show curl sooner than large rounded shapes. Add a small corner radius where the artwork allows it and include your smallest real production shape in every material test.
A controlled shop test
Print one repeatable test file with light, medium and heavy ink areas. Divide it into four panels:
- Unlaminated control.
- Current laminate and current settings.
- Current laminate with reduced tension.
- Alternate compatible laminate or construction.
Keep printer profile, heater settings, cutter and artwork constant. Measure flatness immediately after printing, after stabilization, after lamination, after cutting and again after 24 hours. Place five finished decals face-up on a flat table and record the maximum edge rise. The exact measurement matters less than using the same method each time.
Do not judge only from a full sheet. Remove several stickers from the liner, apply some to the intended substrate and leave others unapplied. A construction that lies flat on its liner may behave differently after release.
What to record on the job ticket
- Media and laminate lot numbers
- Room temperature and relative humidity
- Printer, ink, profile and heater settings
- Time between printing and lamination
- Laminator tension, pressure and speed
- Cutter blade, force, speed and number of passes
- Sticker size, corner radius and ink coverage
- Curl observations at 0, 2 and 24 hours
This turns a vague complaint into a reproducible production record.
When should you change media?
Change the construction only after you confirm that storage, drying, tension and cut depth are controlled. Then compare candidates using the same file and workflow. Look beyond initial print quality: liner flatness, finished feel, cut consistency and 24-hour curl can have a larger effect on labor and customer satisfaction.
For high-impact powersports and motorsport graphics, explore the MAXDECAL XTREME printable media and request a controlled sample through our product-fit form. A sample is a test opportunity, not a guarantee that one material fits every printer or application.
Frequently asked questions
Can laminated stickers flatten out later?
Some temporary curl relaxes after the construction stabilizes, but persistent stress from mismatched layers or excessive tension usually remains. Check again after 24 hours before deciding.
Does a thicker vinyl always curl less?
No. Thickness affects handling, but curl depends on the balance of the complete construction, including laminate, liner, ink and processing tension.
Can cutter settings cause curl?
Yes. Excessive force can score the liner and make the sheet unstable. It can also encourage edge lift on small or sharply pointed shapes.
What is the fastest first test?
Keep the printed media constant and laminate one half with lower web tension. Leave the other half unlaminated. That quickly separates printing and liner issues from lamination-induced stress.
The practical takeaway
Treat curl as a process signal. Find the first stage where flat media becomes curved, change one variable, and document the result. That disciplined approach is faster than replacing rolls at random—and it builds a workflow your team can repeat.
