Why Contour Cuts Drift After Printing and Laminating

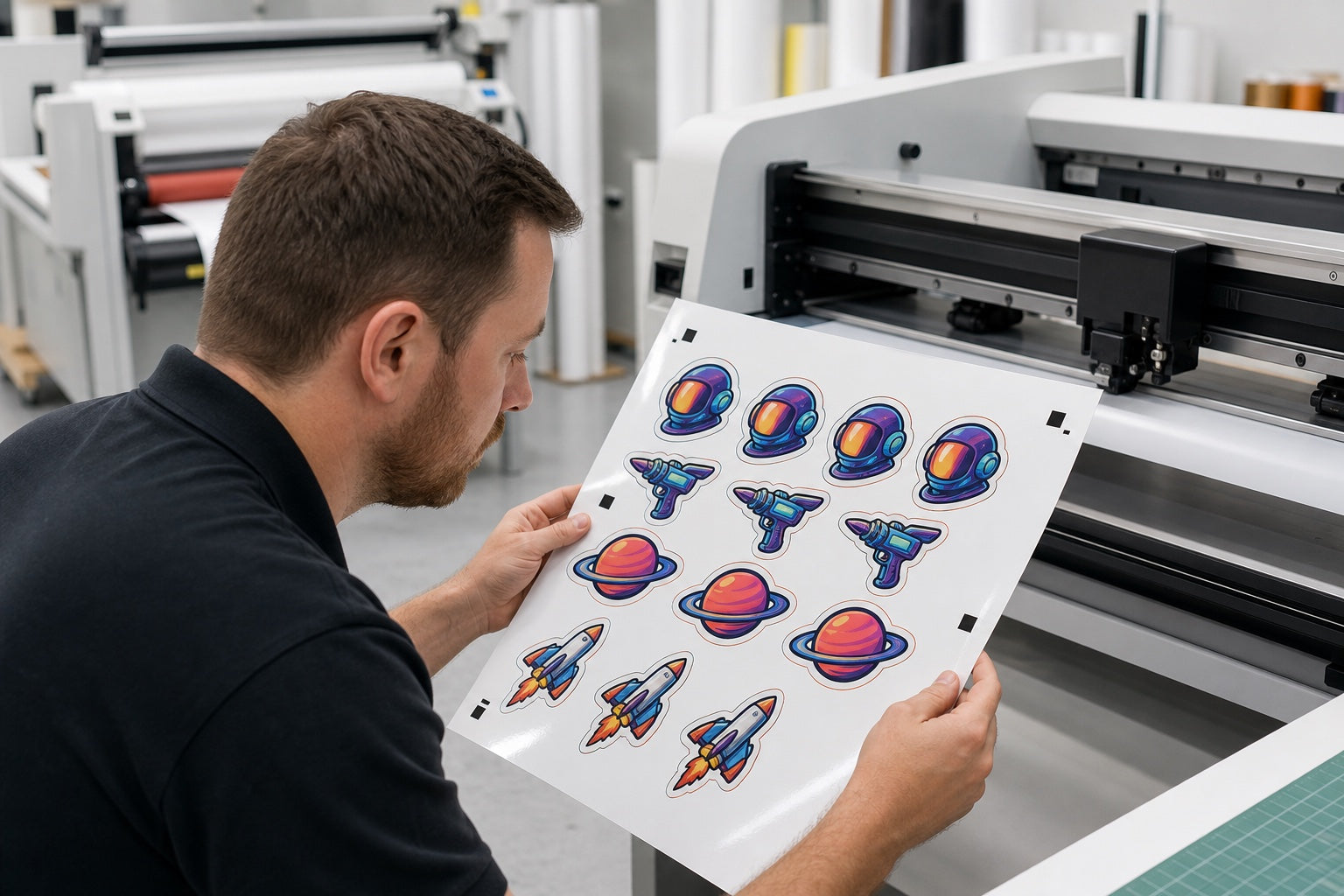

Print technician inspecting registration marks and contour-cut alignment on a laminated sticker sheet

Short answer: Contour cuts usually drift after printing and laminating because the media no longer follows exactly the same path through the machine. Reloading skew, long panel length, feed tension, laminate stiffness, registration mark visibility, and software settings can all move the cut line away from the printed artwork.

For print shops and sign shops, the safest fix is not one setting. Test the full workflow: print, laminate, reload, read registration marks, cut, and measure drift before running customer production.

Why This Matters for Sticker and Decal Production

Contour cutting looks simple when the job is short. A print shop prints the artwork, laminates it, reloads the sheet, and asks the cutter to follow the cut path. The problem is that a small alignment error can become visible across a longer sheet.

On stickers, that drift shows up as uneven borders. On decals, it can cut into the design or leave too much white edge. On commercial jobs, it can waste printed vinyl, laminate, ink, and labor.

Common Causes of Contour Cut Drift

1. The Sheet Is Not Reloaded Straight After Lamination

After lamination, the printed sheet must go back into the cutter or print-and-cut machine. Even a small skew at the start can become obvious farther down the job. This is why long print-and-cut runs are less forgiving than short sheets.

2. The Job Is Too Long for the Current Setup

Some cutters and workflows handle short sticker sheets well but drift on longer panels. Long jobs need tighter feed control, better registration strategy, more bleed, and often segmented or intermediate registration marks. Graphtec describes segment area compensation for long print-and-cut work, while Mimaki documents intermediate marks that correct position more than once across a long outline.

3. Laminate Changes the Material Stack

Laminate adds thickness, stiffness, surface finish, and tension. A laminated sheet may feed differently than an unlaminated sheet. If a short unlaminated test cuts cleanly but the laminated sheet drifts, the issue may be the full material stack, not just the cutter.

4. Registration Marks Are Hard to Read

Registration marks can fail or read inconsistently if the mark contrast is weak, the laminate creates glare, the surface finish is too matte or too reflective, or the sheet is not flat under the sensor. Roland also identifies room lighting and laminate reflections as possible causes of crop-mark detection and cut-offset problems.

5. Pinch Rollers and Feed Path Are Uneven

Pinch roller placement, roller pressure, dust, worn rollers, or uneven media tension can cause the sheet to walk during cutting. If drift slowly grows across the sheet, feed control should be checked.

6. The Cut File Does Not Match the Print File

Page size, rotation, scaling, artwork position, cut-only mode, registration mark type, and software export settings must match the printed job. A small mismatch can look like material drift.

7. There Is Not Enough Bleed

Bleed does not fix mechanical drift, but it makes production more tolerant. If stickers have a tight border and no bleed, even small drift becomes obvious.

Shop-Floor Test: Print, Laminate, Cut, Measure

Before changing material or blaming the cutter, run a controlled test.

  1. Print a simple sheet with squares or sticker shapes.
  2. Add clear registration marks and enough bleed.
  3. Cut one version before lamination.
  4. Laminate the second version with the same overlaminate planned for production.
  5. Reload the laminated sheet as straight as possible.
  6. Run cut-only mode after registration mark detection.
  7. Measure cut accuracy at the top, middle, and bottom of the sheet.
  8. Repeat with a shorter panel if the long sheet drifts.

This test helps separate cutter calibration problems from material stack, lamination, reloading, and long-run feed issues.

What to Check Before Production

  • Is the vinyl loaded square before cutting?
  • Are registration marks clean, high contrast, and easy for the sensor to read?
  • Does laminate glare interfere with mark detection?
  • Does the cutter cut accurately on short sheets?
  • Does drift increase as the panel gets longer?
  • Are segmented registration marks available in your software/cutter workflow?
  • Is there enough bleed around the artwork?
  • Are pinch rollers clean, placed correctly, and applying even pressure?
  • Did print size, page size, rotation, and cut-only settings stay consistent?
  • Has the full vinyl plus laminate stack been tested?

Material Selection Notes

Printable vinyl, liner, and laminate all affect the finished workflow. For sticker production, a material that prints well but feeds poorly after lamination can still create waste. For decal production, the laminate needs to protect the print without making the sheet difficult to reload, scan, or cut.

When evaluating new printable vinyl, test more than image quality. Test feeding, lamination behavior, registration mark detection, contour cutting, weeding, stacking, and packing.

Official Workflow References

Features and terminology vary by cutter, printer, and RIP version. Confirm the instructions for your exact equipment before production.

FAQ

Should shops print, laminate, then contour cut?

Yes, many printed decal and sticker workflows use print-only, laminate, then cut-only with registration marks. The key is keeping the print file, cut file, registration marks, page size, and reload position consistent.

Why does contour cutting start correctly but drift later?

If the cut starts correctly and then drifts, the issue is often feed-related. Media skew, long panel length, roller pressure, material tension, or the laminated stack can cause small movement to build across the sheet.

Can laminate cause contour cut drift?

Laminate can contribute to drift because it changes the sheet thickness, stiffness, surface finish, and tension. It may also affect registration mark visibility if the surface creates glare or lowers contrast.

Do segmented registration marks help?

Segmented registration marks can help on longer jobs because the cutter can correct alignment in sections instead of relying on one large panel. Availability depends on the cutter and software workflow.

How much bleed should stickers have?

Bleed depends on job size and tolerance, but sticker artwork should not rely on perfect zero-error cutting. Add enough bleed so small cut variation does not expose unwanted borders or cut into critical artwork.

How can a shop test whether the material is the problem?

Run the same file on the same machine in two versions: unlaminated and laminated. If the unlaminated sheet cuts accurately and the laminated sheet drifts, test laminate tension, registration mark visibility, liner flatness, and material stack behavior.
