The safest way to select printable vehicle graphic media is to begin with surface geometry and the approved material system, not the word “wrap” on a category page. A flat box-truck side, a simple door curve, a compound bumper, rivets and a deep recessed channel place different demands on the finished print-and-laminate construction.
This guide provides a decision framework for sign shops, print shops and fleet-graphics producers. The current technical data for the exact film, ink, laminate and application always controls.
Why “Cast vs. Calendered” Is Only the First Question
Cast films are generally associated with lower internal stress, dimensional stability and conformability. Calendered and polymeric films can be practical for less demanding shapes and specific fleet applications. But material family alone is not a job approval.
Two films in the same broad family may differ in:
- face-film thickness and construction;
- adhesive behavior and opacity;
- air-egress liner design;
- approved printer and ink systems;
- recommended laminate;
- repositionability and application method;
- removability, durability and warranty conditions;
- approved curves, channels and substrates.
SignWarehouse’s discussion of cast and calendered vehicle media illustrates why geometry changes the decision. Manufacturer bulletins then provide the product-specific limits that a general comparison cannot.
Surface Geometry Decision Matrix
| Geometry | Typical examples | Primary production concerns | Evidence required before approval |
|---|---|---|---|
| Flat | Box-truck side, trailer panel, flat door insert | Dimensional stability, opacity, panel size, seam plan | Technical data approving surface/application; print-laminate test |
| Simple curve | Mild crown, gently curved door or fender area | Handling, edge stress, panel orientation | Finished construction tested on comparable curve |
| Compound curve | Bumper corner, mirror, complex fender | Multi-directional forming, tension, finish consistency | Explicit conformability approval and installer method |
| Rivets/corrugations | Trailer, utility body, container | Contact around repeated features, entrapped air, finishing | Manufacturer application method; representative test |
| Channel/recess | Van body channel, stamped recess | Bridging, stored stress, stable contact in recess | Explicit channel/deep-recess approval; documented technique |
| Textured/flexible/nonstandard | Plastic trim, textured coating, flexible part | Surface energy, movement, contamination, removability | Written substrate approval or controlled adhesion test |
The matrix is a qualification tool. It does not promise that one construction fits every example in a row.
Level 1: Flat Panels
Flat panels often allow the broadest range of printable media, but they still require a complete specification. A large trailer panel can magnify color variation, liner tracking, installation bubbles and seam inconsistency.
Evaluate:
- usable printable width and panel nesting;
- opacity over the actual paint or substrate;
- adhesive fit for the surface and service;
- laminate pairing and finish;
- panel length, handling and installer access;
- replacement strategy for damaged fleet sections.
A flat application is not automatically low risk. Large panels make small production variations visible across a fleet.
Level 2: Simple Curves
A simple curve bends mainly in one direction. These areas can be suitable for systems that are not intended for severe compound shapes, but only when the current material guidance allows it.
Test the finished construction—not only unprinted film. Ink and laminate can change handling. Confirm that the panel can be positioned, applied and finished without forcing it beyond the validated method.
Questions to document:
- Does the curve continue to an exposed edge?
- Will the installer need to stretch the graphic?
- Does a body line concentrate tension?
- Is the laminate approved for the same geometry?
- Can the design be repositioned to reduce stress?

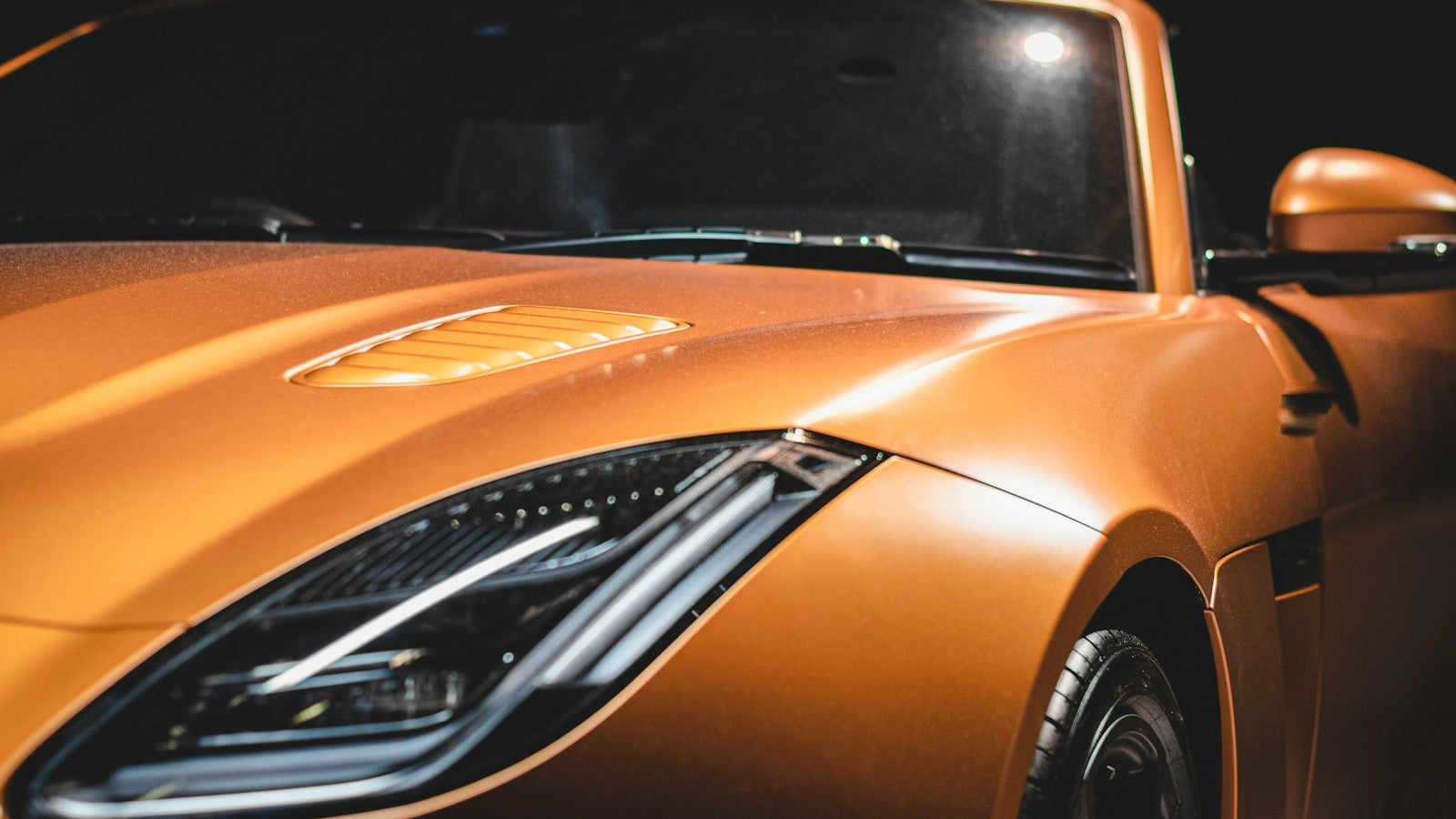

Level 3: Compound Curves
Compound curves bend in more than one direction. The finished construction must conform while maintaining stable contact and acceptable appearance.
Do not assume that an air-egress adhesive makes a film suitable for compound curves. Air-egress channels help manage trapped air; they do not define the full conformability of a media-laminate system.
Approval should include:
- product documentation for the geometry;
- compatible laminate confirmation;
- installer familiarity with the system;
- a representative test when the job is material or process critical;
- a design plan that avoids unnecessary stress and distortion.
Level 4: Rivets and Corrugations
Rivets and corrugations introduce repeated transitions. A material may contact the broad field correctly while tenting around each feature.
Review the manufacturer’s prescribed method. Decide whether the graphic will be formed, cut, relieved or otherwise handled around the feature. Record that method in the installer handoff.
For fleet work, compare the same feature across multiple vehicles. A repeatable method matters more than one visually acceptable demonstration panel.
Level 5: Channels and Deep Recesses
Channels are the highest-risk area in this framework because they can retain stress and reveal incomplete contact after delivery.
Before approving a system, confirm:
- whether the film is explicitly approved for the channel depth and shape;
- whether the recommended technique forms into the recess or uses another construction method;
- whether the laminate shares the required conformability;
- how pressure, finishing and dwell are handled;
- what inspection is required before the vehicle enters service.
If the documentation does not cover the geometry, escalate the decision. Do not convert missing evidence into a performance claim.
Nonstandard Surfaces Need a Separate Decision
Vehicle graphics may encounter plastic trim, textured paint, repaired panels, low-surface-energy plastics, oxidized paint, coatings or flexible components. These are substrate questions, not only geometry questions.
The shop should:
- identify the exact surface;
- inspect its condition;
- check written compatibility;
- test preparation and adhesion when permitted;
- document exclusions and removal risks;
- decline or redesign the job when evidence is insufficient.
Select the Whole Construction
The production system includes:
- printable face film;
- ink and print mode;
- drying, curing or outgassing interval;
- overlaminate or protective layer;
- contour cutting or panel trimming;
- substrate preparation;
- application method and environment.
Changing one element can change the behavior of the finished graphic. Maintain a retained sample from the approved production combination.
A Five-Step Approval Workflow
- Map the hardest geometry. The most demanding area often determines the construction or panel strategy.
- Shortlist only documented candidates. Remove products that do not approve the printer, ink, laminate, substrate or shape.
- Design around risk. Move seams, edges and critical graphics when that reduces stress or improves serviceability.
- Test the finished construction. Use representative printing, lamination and geometry.
- Release with evidence. Attach technical files, test record, panel map and installer instructions to the job.
Frequently Asked Questions
Is cast vinyl always required for vehicle graphics?
No universal rule covers every vehicle graphic. Geometry, duration, substrate, finished construction and product instructions determine fit. Flat or moderately shaped fleet applications may have options that are not suitable for compound curves or deep recesses.
Can calendered printable vinyl be used on vehicles?
Some products are intended for specific vehicle or fleet applications, while others are not. Use the exact technical documentation and match it to the surface geometry rather than relying on the word “calendered.”
Does air-egress adhesive mean a film can wrap deep channels?
No. Air-egress describes a feature that helps manage trapped air. It does not by itself approve compound curves, channels, recesses or every vehicle substrate.
Why must the laminate be included in the test?
The laminate changes the finished construction’s thickness, stiffness, finish and handling. Test the media, ink and laminate together under the planned workflow.
What if the vehicle has both flat panels and deep recesses?
The shop can select a construction approved for the hardest geometry or redesign/panel the job so different areas receive appropriate treatment. Document the decision before printing.
