A printable vehicle graphics preflight should confirm more than artwork size. Before ink reaches film, the shop needs agreement on the vehicle, panel geometry, media construction, printer workflow, laminate, cutting, installation handoff and acceptance standard. One missing decision can turn into a reprint after the panels are already laminated.
Use this checklist for commercial fleet graphics, partial wraps, spot graphics and other printed vehicle applications. It does not replace the instructions for the selected film, printer, ink or laminate.
1. Confirm the Actual Vehicle
Record the year, make, model, body configuration, wheelbase, roof height and aftermarket modifications. Photograph both sides, front, rear and critical details.
Do not rely only on a template name. Shelving, windows, ladders, body repairs, sensors, trim and replacement panels can change the printable and installable area.
Release evidence: vehicle ID, current photographs and signed scope.
2. Mark the Application Geometry
Divide the job into:
- flat panels;
- simple curves;
- compound curves;
- corrugations or rivets;
- channels and recesses;
- flexible trim, textured parts and excluded surfaces.
This map informs material selection and panel design. A film that is appropriate for a flat trailer side should not automatically be assumed suitable for a deep vehicle recess.
Release evidence: annotated panel map.
3. Define the Coverage Level
Clarify whether the order is:
- spot lettering or decals;
- printed spot graphics;
- partial wrap;
- full printed wrap;
- fleet replacement panel;
- temporary promotional graphic.
Coverage affects artwork bleed, seam planning, print order, installation time and future replacement strategy.
Release evidence: approved coverage diagram.
4. Preflight Artwork at Output Scale
Check:
- final dimensions and scale;
- raster resolution at output size;
- linked images;
- vector logos and outlined or packaged fonts;
- color space and named brand colors;
- transparency, effects and clipping paths;
- bleed beyond visible panel boundaries;
- safe placement away from doors, handles, seams, sensors and wheel openings.
The goal is not only a file that prints. It must still communicate when installed on a moving, three-dimensional object.
Release evidence: approved proof with panel boundaries.
5. Match Media to the Job, Not the Category Name
Record the exact media and why it fits the job. Review:
- approved printer and ink compatibility;
- surface and geometry limits;
- adhesive and liner behavior;
- opacity requirements;
- expected exposure and service plan;
- compatible laminate or protective film;
- removability and warranty conditions when applicable.
“Vehicle vinyl” is not a complete specification. SignWarehouse’s cast-versus-calendered discussion and manufacturer instructional libraries both show that application geometry matters. The current technical data for the exact product controls the decision.
Release evidence: media SKU, revision/date of technical file and fit rationale.

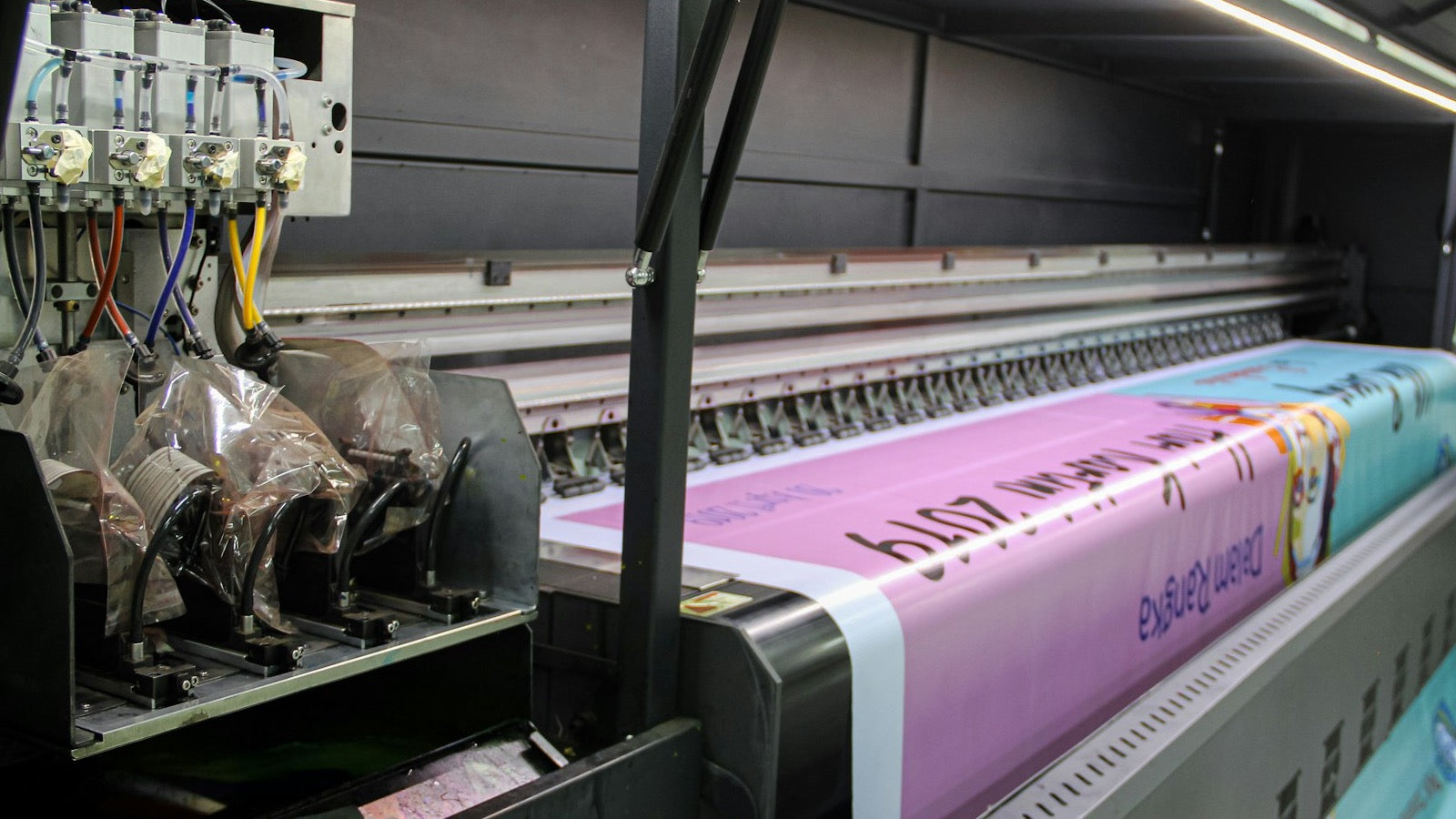

6. Lock the Printer, Ink, Profile and Mode
Document the production combination:
- printer model;
- ink set;
- RIP and profile;
- pass/quality mode;
- heater or curing settings where applicable;
- color-control target;
- media loading and take-up method.
Changing the profile or print mode can change ink load, color, drying behavior and dimensional response. A test made under one workflow does not automatically approve another.
Release evidence: saved job ticket or RIP preset.
7. Plan Drying, Curing or Outgassing
Follow the printer, ink and film instructions for the selected system. Record when printing ends and when lamination begins. Do not replace a documented interval with “it felt dry.”
If production timing is compressed, flag it before printing. Lamination, cutting and installation schedules should be built around the validated workflow rather than forcing the workflow into an arbitrary delivery time.
Release evidence: print-complete and laminate-start timestamps.
8. Confirm the Laminate Construction
Check that the overlaminate is approved for the printed media and intended geometry. Align roll widths where practical and confirm:
- finish;
- compatibility;
- application method;
- tension control;
- edge strategy;
- total construction behavior on curves;
- any required test or dwell interval.
The face film, printed ink layer, adhesive, liner and laminate act as one finished construction. Evaluate them together.
Release evidence: laminate SKU and retained finished sample.
9. Build the Panel, Seam and Print Order
Before ripping the full job, decide:
- panel orientation;
- seam direction;
- overlap or butt-seam method if applicable;
- print sequence;
- color consistency plan across panels and vehicles;
- replacement strategy for commonly damaged areas;
- file naming and panel labels.
Print order matters when several vehicles need a consistent appearance. Use repeatable naming and keep the approved proof connected to every panel.
Release evidence: panel map and file manifest.
10. Run a Production-Representative Test
A useful test uses the actual:
- printer and ink;
- profile and mode;
- media and laminate;
- drying/curing interval;
- cutter if contour cutting is included;
- representative surface or geometry.
Test color, handling, lamination, cutting and application characteristics that matter to the job. Record observations rather than relying on memory.
Release evidence: labeled retained sample and test record.
11. Inspect Before Installer Handoff
Check every panel for:
- missing or duplicated panels;
- color inconsistency;
- banding, contamination or print defects;
- laminate silvering, tunneling, wrinkles or edge damage;
- incorrect trim, marks or labels;
- transport damage and tight winding;
- correct installation sequence.
If panels need to rest, acclimate or remain loosely wound, include that instruction in the handoff.
Release evidence: signed production QC checklist.
12. Define Acceptance and Traceability
The installer should receive:
- vehicle and panel map;
- panel sequence;
- material identification;
- current application instructions;
- exclusions and risk notes;
- customer-approved proof;
- contact for production questions.
Keep a retained sample, batch information and production timestamps. Traceability shortens troubleshooting if one vehicle or one batch behaves differently.
Release evidence: complete job packet.
Printable Preflight Summary
| Gate | Question | Stop the job when… |
|---|---|---|
| Vehicle | Is the exact vehicle documented? | Photos, configuration or modifications are missing |
| Geometry | Are critical shapes mapped? | Film fit is being assumed from a category label |
| Artwork | Is the file approved at output scale? | Logos, bleed, resolution or placement are unresolved |
| Media | Is the construction documented? | Compatibility or geometry limits are unknown |
| Is the workflow locked? | Profile, mode or ink set may change after approval | |
| Timing | Is the validated interval scheduled? | Lamination timing depends on guesswork |
| Laminate | Is the pairing approved and tested? | Finished construction behavior is unknown |
| Panels | Are seams and print order defined? | Installer must invent the panel plan onsite |
| QC | Has every panel passed inspection? | Defects or missing traceability remain |
Frequently Asked Questions
What is vehicle graphics preflight?
Vehicle graphics preflight is the documented review of the vehicle, artwork, geometry, material construction, printing, lamination, panel plan and installation handoff before full production begins.
Should a wrap shop test every printable vinyl?
Test every new or changed production combination that matters to the job. A change in media, laminate, ink, profile, printer, timing or application surface can make an earlier result unrepresentative.
Is a vehicle template enough for production?
No. A template helps with design, but the actual vehicle can contain modifications, repairs and surface conditions that change the printable and installable area.
Why record drying or curing times?
Timestamps make the workflow repeatable and help isolate timing-related problems. Follow the current instructions for the printer, ink and material system.
Who should approve the panel map?
Production, design and installation should share the same panel plan. Customer approval should cover visible design and placement, while technical panel construction remains a documented shop responsibility.
Next Step
